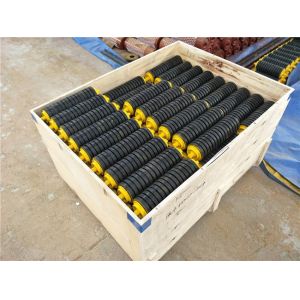

Rubber Lagging C4 Mining Conveyor Impact Roller For Coal Transportation

Belt Conveyor Shock Absorber Idler Roller With Rubber Rings For Mining Conveyor​

Rubber rollers are used in conveyors in acid and alkali resistant industries. Rubber rollers can replace the previous metal rollers and nylon plastic rollers. They have long service life, easy installation, stable self-centering, and reduce conveyor belt deviation and protect conveyor belts. Compared with traditional iron rollers, the rubber roller has better performance, low wear coefficient, small specific gravity, light weight, easy replacement, low noise, stable operation, and is more suitable for working environments with harsh production conditions and has a long service life.

Detailed conveyor roller idler feature:

1. Roller idlers Dia 50mm-219mm, length 190-3400mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc
2. Tube: Q235
3. Shaft: 45# STEEL
5. Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.

6. Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
7. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
8. Welding: Mixed gas shielded arc welding end
9. Painting: Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting

conveyor roller Description

The rubber spiral roller has the following functions in the conveyor belt

1. The unique product structure enables the conveyor belt to have the characteristics of non-stick roller, strong self-cleaning force and non-stick belt under the environment of conveying viscous and wet materials;
2. This product fundamentally solves the serious problems of corrosion, sticky rollers, tape deviation and tearing that are common in belt conveyors.
3. It has the characteristics of novel structure, convenient installation and maintenance, stable self-centering conveying, non-stick roller, low noise, low energy consumption and prolonged belt service life.
4. It has a strong ability to automatically correct the deviation of the conveyor belt, and at the same time, it protects and avoids the possibility of external tearing of the rubber conveyor belt to the maximum extent; 5. At the same time, it maximizes the life of the conveyor belt and saves Energy consumption greatly reduces production costs and improves economic efficiency. The specific size parameters and other indicators can be changed or redesigned according to user requirements or actual usage.
